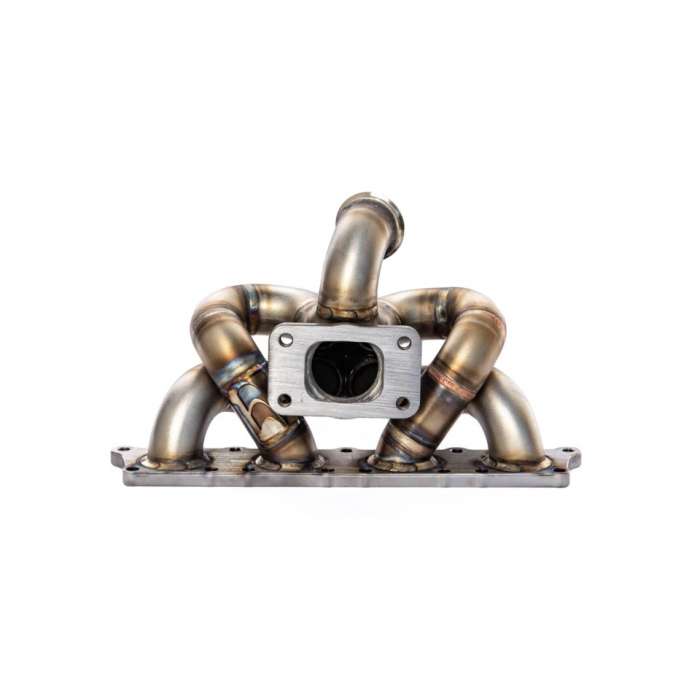

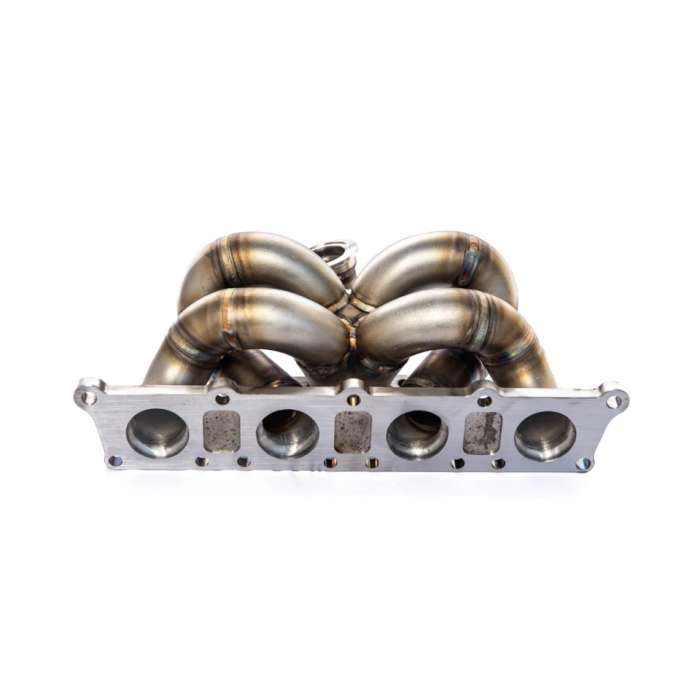

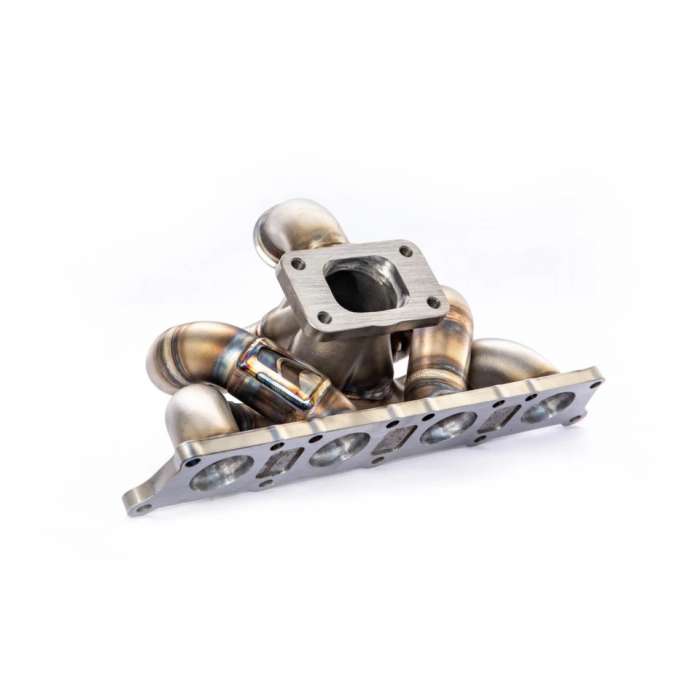

VW 1.8T Transverse T3 ProStreet Turbo Manifold

 turbo manifold for the VW 1.8T motor. This T3 turbocharger manifold is a must for those seeking to extract maximum power from their setup.

Applications:

• Volkswagen 1.8T transverse engine configurations.

Application Notes:

• Manifolds fit both FWD and AWD Transverse 1.8T applications.
• Manifold designed for standard Garrett 4-bolt T3 turbos with both 3″ Inlet .60 a/r T04’E’ OR 4″ Inlet .70 a/r T04’S’ compressor housings. The correct housing must be stated when ordering the manifold.
• T04E compressor housing can be clocked with the outlet facing upwards or downwards.
• T04S compressor housings must be clocked with outlet facing downwards.
• Designed for use with TiAL 44mm wastegate only.
